button.h File Reference

Hardware Application Layer for Buttons. More...

#include <stdio.h>
#include "freertos/FreeRTOS.h"
#include "freertos/task.h"
#include "driver/gpio.h"

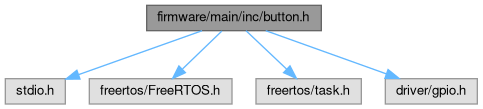

Include dependency graph for button.h:

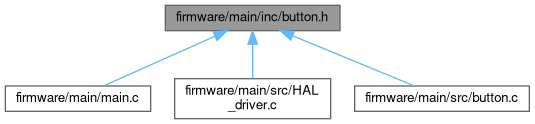

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	Button
	Custom Button structure to automate button setup. More...

Macros
#define	ESP_INTR_FLAG_DEFAULT   0
#define	PULL_SEL_EN   1

Typedefs
typedef struct Button	Button

Functions
void	buttonInit (Button *button)
	Button Initialization for buttons. More...
int	buttonRead (Button *button)
	buttonRead will read the gpio pin More...
void	buttonInitIRQ (Button *button)
	buttonInitIRQ will intialize button for interrupt routine More...
void	buttonInterrupt (void *arg)
	buttonInterrupt will be an general routine for buttons interrupts. More...

Detailed Description

Hardware Application Layer for Buttons.

Author

Jesus Minjares (https://github.com/jminjares4)

Version

0.1

Date

2021-11-27

Copyright

Copyright (c) 2021

Macro Definition Documentation

ESP_INTR_FLAG_DEFAULT

#define ESP_INTR_FLAG_DEFAULT   0

PULL_SEL_EN

#define PULL_SEL_EN   1

Typedef Documentation

Button

typedef struct Button Button

Function Documentation

buttonInit()

void buttonInit

(

Button *

button

)

Button Initialization for buttons.

Parameters

button

pass a Button by reference

Returns

None

Note

buttonInit() is use when the button or input will be read as high or low level for interrupt intitialization

See also

buttonInitIRQ()

buttonInitIRQ()

void buttonInitIRQ

(

Button *

button

)

buttonInitIRQ will intialize button for interrupt routine

Parameters

button

pass a Button by referene

Returns

None

Parameters

button

pass a Button by referene

Returns

None

buttonInterrupt()

void buttonInterrupt

(

void *

arg

)

buttonInterrupt will be an general routine for buttons interrupts.

Parameters

arg	interrupt argument

buttonRead()

int buttonRead

(

Button *

button

)

buttonRead will read the gpio pin

Parameters

button

pass a Button by reference

Returns

int return either high or low || 0 or 1

Parameters

button

pass a Button by reference

Returns

int return either high or low || 0 or 1
