led.h File Reference

Hardware Application Layer for any LEDs. More...

#include <stdio.h>
#include "freertos/FreeRTOS.h"
#include "freertos/task.h"
#include "driver/gpio.h"

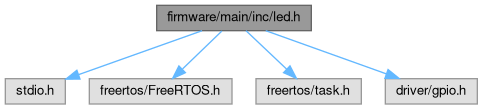

Include dependency graph for led.h:

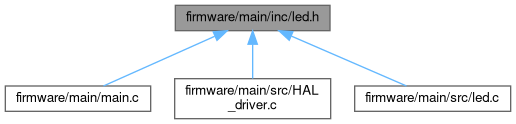

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	Led
	This is a custom library for easy use of Led without the struggle of doing all the hardware intializatio and selection. More...

Macros
#define	HIGH   1
#define	LOW   0
#define	ONBOARD_LED   2

Typedefs
typedef enum state_t	state_t

Enumerations
enum	state_t { LED_OFF = 0 , LED_ON = 1 }
	led.h More...

Functions
void	ledInit (Led *led)
	Led initialization for any led. More...
void	ledOn (Led *led)
	ledOn will set high the instance of the led More...
void	ledOff (Led *led)
	ledOff will set low the instance of the led More...
void	ledAllOff (Led *led, int size)

Detailed Description

Hardware Application Layer for any LEDs.

Author

Jesus Minjares (https://github.com/jminjares4)

Version

0.1

Date

2021-11-27

Copyright

Copyright (c) 2021

Macro Definition Documentation

HIGH

#define HIGH   1

LOW

#define LOW   0

ONBOARD_LED

#define ONBOARD_LED   2

Typedef Documentation

state_t

typedef enum state_t state_t

Enumeration Type Documentation

state_t

enum state_t

led.h

Led struct for any outputs

Enumeration of the led state

Example

typedef enum {
 LED_OFF = 0, // OFF
 LED_ON = 1, // ON
}state_t;

Enumerator
LED_OFF	led off
LED_ON	led on

Function Documentation

ledAllOff()

void ledAllOff	(	Led *	led,
		int	size
	)

ledInit()

void ledInit

(

Led *

led

)

Led initialization for any led.

Parameters

led	pass a Led by reference

Returns

None

Parameters

led	pass a Led by reference

Returns

None

ledOff()

void ledOff

(

Led *

led

)

ledOff will set low the instance of the led

Parameters

led	pass a Led by reference

Note

None

ledOn will change the state of the led

See also

state

Parameters

led	pass a Led by reference

Note

None

ledOn will change the state of the led

See also

state

ledOn()

void ledOn

(

Led *

led

)

ledOn will set high the instance of the led

Parameters

led	pass a Led by reference

Returns

None

Note

ledOn will change the state of the led

See also

state

Parameters

led	pass a Led by reference

Returns

None

Note

ledOn will change the state of the led

See also

state
