accelerometer.h File Reference

Hardware Application Layer for ADXL335 Accelerometer. More...

#include "driver/adc.h"
#include <stdio.h>
#include "freertos/FreeRTOS.h"
#include "freertos/task.h"

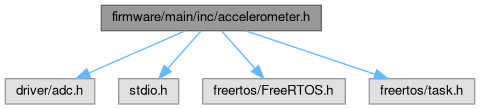

Include dependency graph for accelerometer.h:

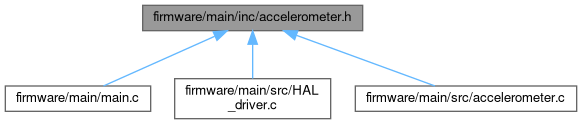

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	Accelerometer
	Accelerometer struct for ADXL335. More...

Macros
#define	ACC_ADC_WIDTH   (adc_bits_width_t)(ADC_WIDTH_BIT_12)
	Accelerometer Macros for modularity. More...
#define	X_AXIS   (adc1_channel_t)(ADC1_CHANNEL_6)
#define	Y_AXIS   (adc1_channel_t)(ADC1_CHANNEL_7)
#define	Z_AXIS   (adc1_channel_t)(ADC1_CHANNEL_4)
#define	ACC_ADC_ATTEN   (adc_atten_t)(ADC_ATTEN_DB_11)

Functions
void	adcInit (Accelerometer *acc)
	ADC initialization for the accelerometer. More...
int	read_axis (Accelerometer *acc, int id)
	Read axis for the accelerometer. More...

Detailed Description

Hardware Application Layer for ADXL335 Accelerometer.

Author

Jesus Minjares (https://github.com/jminjares4)

Version

0.1

Date

2021-11-27

Copyright

Copyright (c) 2021

Macro Definition Documentation

ACC_ADC_ATTEN

#define ACC_ADC_ATTEN   (adc_atten_t)(ADC_ATTEN_DB_11)

ACC_ADC_WIDTH

#define ACC_ADC_WIDTH   (adc_bits_width_t)(ADC_WIDTH_BIT_12)

Accelerometer Macros for modularity.

Note

Adjustable Macros to channel any of the adc pins of the accelerometer

X_AXIS

#define X_AXIS   (adc1_channel_t)(ADC1_CHANNEL_6)

Y_AXIS

#define Y_AXIS   (adc1_channel_t)(ADC1_CHANNEL_7)

Z_AXIS

#define Z_AXIS   (adc1_channel_t)(ADC1_CHANNEL_4)

Function Documentation

adcInit()

void adcInit

(

Accelerometer *

acc

)

ADC initialization for the accelerometer.

Parameters

acc	pass a Accelerometer by reference

Returns

None

Parameters

acc	pass a Accelerometer by reference

Returns

None

read_axis()

int read_axis	(	Accelerometer *	acc,
		int	id
	)

Read axis for the accelerometer.

Parameters

acc	pass a Accelerometer by reference
id	adc channel raw data

Returns

int adc raw from the desire id

Note

0 X_AXIS, 1 Y_AXIS, 2 Z_AXIS, anything else will return 0

Parameters

acc	pass a Accelerometer by reference
id	adc channel raw data

Returns

int adc raw from the desire id

Note

0 X_AXIS, 1 Y_AXIS, 2 Z_AXIS, anything else will return 0

if 0: read x-axis elif 1: read y-axis elif 2: read z-axis else: 0
