serial_communication.h File Reference

Hardware Application Layer for Serial Communication. More...

#include <stdio.h>
#include "freertos/FreeRTOS.h"
#include "freertos/task.h"
#include "driver/uart.h"
#include <string.h>

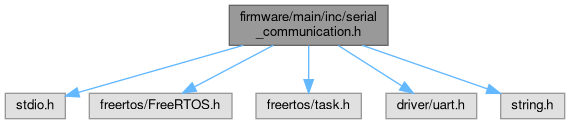

Include dependency graph for serial_communication.h:

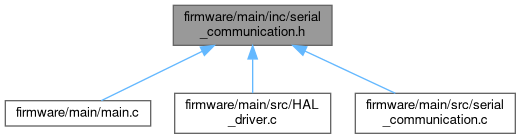

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	SerialComm
	Custom SerialComm structure for UART adaptablity. More...

Macros
#define	UART_0_RX   3
#define	UART_0_TX   1
#define	UART_1_RX   9
#define	UART_1_TX   10
#define	UART_2_TX   17
#define	UART_2_RX   16
#define	UART_BUFFER_SIZE   1024
#define	UART_0   UART_NUM_0
#define	UART_1   UART_NUM_1
#define	UART_2   UART_NUM_2
#define	NO_PIN   UART_PIN_NO_CHANGE
#define	FIVE_BITS   UART_DATA_5_BITS
#define	SIX_BITS   UART_DATA_6_BITS
#define	SEVEN_BITS   UART_DATA_7_BITS
#define	EIGHT_BITS   UART_DATA_8_BITS
#define	ONE_STOP_BIT   UART_STOP_BITS_1
#define	ONE_HALF_STOP_BIT   UART_STOP_BITS_1_5
#define	TWO_STOP_BIT   UART_STOP_BITS_2

Typedefs
typedef struct SerialComm	SerialComm

Functions
void	serialCommInit (SerialComm *serial)
	serialCommInit will intialize external serial communication More...
void	serial_write (SerialComm *serial, char *str, int size)
	serial_write will write the bytes that will be sent via serial communication More...

Detailed Description

Hardware Application Layer for Serial Communication.

Author

Jesus Minjares (https://github.com/jminjares4)

Version

0.1

Date

2021-11-27

Copyright

Copyright (c) 2021

Macro Definition Documentation

EIGHT_BITS

#define EIGHT_BITS   UART_DATA_8_BITS

FIVE_BITS

#define FIVE_BITS   UART_DATA_5_BITS

NO_PIN

#define NO_PIN   UART_PIN_NO_CHANGE

ONE_HALF_STOP_BIT

#define ONE_HALF_STOP_BIT   UART_STOP_BITS_1_5

ONE_STOP_BIT

#define ONE_STOP_BIT   UART_STOP_BITS_1

SEVEN_BITS

#define SEVEN_BITS   UART_DATA_7_BITS

SIX_BITS

#define SIX_BITS   UART_DATA_6_BITS

TWO_STOP_BIT

#define TWO_STOP_BIT   UART_STOP_BITS_2

UART_0

#define UART_0   UART_NUM_0

UART_0_RX

#define UART_0_RX   3

UART_0_TX

#define UART_0_TX   1

UART_1

#define UART_1   UART_NUM_1

UART_1_RX

#define UART_1_RX   9

UART_1_TX

#define UART_1_TX   10

UART_2

#define UART_2   UART_NUM_2

UART_2_RX

#define UART_2_RX   16

UART_2_TX

#define UART_2_TX   17

UART_BUFFER_SIZE

#define UART_BUFFER_SIZE   1024

Typedef Documentation

SerialComm

typedef struct SerialComm SerialComm

Function Documentation

serial_write()

void serial_write	(	SerialComm *	serial,
		char *	str,
		int	size
	)

serial_write will write the bytes that will be sent via serial communication

Parameters

serial	pass a SerialComm by reference
str	string that will be sent via the serial communication
size	length of string

Parameters

serial	pass a SerialComm by reference
str	string that will be sent via the serial communication
size	length of string

serialCommInit()

void serialCommInit

(

SerialComm *

serial

)

serialCommInit will intialize external serial communication

Parameters

serial

pass a SerialComm by reference

Returns

None

Parameters

serial

pass a SerialComm by reference

Returns

None
