serial_communication.h source code More...

#include "inc/serial_communication.h"

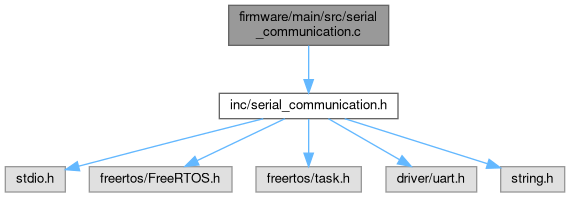

Include dependency graph for serial_communication.c:

Functions
void	serialCommInit (SerialComm *serial)
	serialCommInit will intialize external serial communication More...

void	serial_write (SerialComm serial, char str, int size)
	serial_write will write the bytes that will be sent via serial communication More...

Variables
SerialComm	externalSerial

Detailed Description

serial_communication.h source code

Author: Jesus Minjares (https://github.com/jminjares4)

Version: 0.1

Date: 2021-11-27

Copyright: Copyright (c) 2021

Function Documentation

◆ serial_write()

void serial_write	(	SerialComm *	serial,
		char *	str,
		int	size
	)

serial_write will write the bytes that will be sent via serial communication

Parameters

serial	pass a SerialComm by reference
str	string that will be sent via the serial communication
size	length of string

◆ serialCommInit()

void serialCommInit ( SerialComm * serial )

serialCommInit will intialize external serial communication

Parameters

serial pass a SerialComm by reference

Returns: None

Variable Documentation

◆ externalSerial

SerialComm externalSerial

Initial value:

= {
    .gpio_rx = UART_2_RX,
    .gpio_tx = UART_2_TX,
    .gpio_rts = NO_PIN,
    .gpio_cts = NO_PIN,
    .uart_num = UART_2,
    .baud_rate = 9600,
    .parity = UART_PARITY_DISABLE,
    .stop_bits = ONE_STOP_BIT,
    .data_bits = EIGHT_BITS,
}
